Blind Rivet C/Sunk Head Stainless Steel Body A2 /Stainless Steel Mandrel A2
Product Code: A2K4810
Head Type: CSK Head
Min Grip Range (mm): 3
Max Grip Range (mm): 5
Shear N: 4500
Tensile N: 6000
Body Mat: Stainless Steel A2
Mandrel Mat: Stainless Steel A2
Hole: 4.9 mm

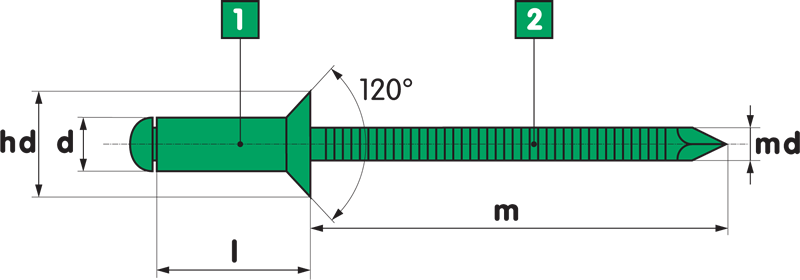

hd: 9.0 + 0.0 /- 0.5mm
d: 4.8 + 0.08 /- 0.15mm
l: 10mm
h: 120°
m: 27mm
md: 2.9mm
